配件料號：

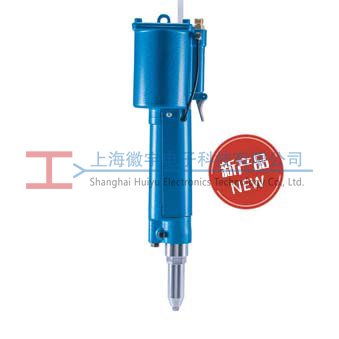

| Model No. ARV-015M | |
| Code | Parts Name |
| 10027 | Nosepiece 'S' 2.4 (3/32) |
| 10028 | Nosepiece 'S' 3.2 (1/8) |
| 10029 | Nosepiece 'S' 4.0 (5/32) |
| 10030 | Nosepiece 'S' 4.8 (3/16) |
| 10105 | Frame Head 'M' |
| 10116 | Jaw Case Head |
| 10151 | O-Ring S-10 |
| 10115 | Jaw Case |
| 10281 | Ultra Jaws (pair) "M" |
| 10132 | Jaw Pusher |
| 10133 | Jaw Pusher Spring |
| 14238 | Guide Pipe "A" (brass) |
| 14234 | Guide Pipe "B" (st. steel) |
| 10148 | Lock Washer A-7/16 |
| 10113 | Jaw Case Lock Nut |
| 10128 | O-Ring P-12 |
| 10129 | B-Ring P-12 |
| 14310 | Frame Unit (with O-/B-Rings) |
| 10368 | Air Release Screw M6 x 10 |
| 10355 | Pack Seal 6mm |
| 10130 | O-Ring P-22A |
| 10131 | B-Ring P-22A |
| 10241 | Oil Piston (with pin) |
| 10150 | O-Ring P-6 |
| 10377 | Covering Adaptor |
| 14200 | Return Spring A+B (set) |
| 10110 | Return Spring "A" (inner) |
| 10111 | Return Spring "B" (outer) |
| 10153 | O-Ring S-26 |
| 10378 | Frame Cap "A" |
| 10351 | Frame Cap "B" |
| 10274 | O-Ring P-10 |
| 10356 | Frame Cap Screw M4 x 20 |
| 10370 | Washer for nozzle |
| 14324 | Nozzle Unit (includes O-Rings) |
| 10276 | O-Ring S-5 |
| 10220 | O-Ring S-6 |
| 10365 | Connecting Bolt |
| 10364 | Pack Seal 12mm |
| 10151 | O-Ring S-10 |
| 10375 | Oil Tank only |
| 10128 | O-Ring P-12 |
| 10129 | B-Ring P-12 |
| 10373 | Air Cylinder |
| 10112 | Frame Lock Nut |
| 10251 | Spring Pin 3 x 20 |
| 10150 | O-Ring P-6 |
| 10345 | Valve Pusher |
| 10333 | O-Ring P-3 |
| 10246 | Valve Pusher Spring |
| 10376 | Trigger (short) |
| 10145 | Spring Pin 3 x 18 |
| 10150 | O-Ring P-6 |
| 10247 | Valve (steel ball 8.0mm) |
| 10248 | Valve Spring |
| 10219 | O-Ring P-9 |
| 10264 | Coupler, Male |
| 14001 | Female Nipple "A" |
| 14484 | Nipple (1/4-1/4) |
| 10134 | O-Ring P-60 |
| 10114 | Bumper (Rubber Cushion) |
| 14218 | Air Piston Unit (with bumper) |
| 10080 | O-Ring G-70 |
| 10374 | Air Cylinder Cap "V-MS" (blue) |
| 10511 | Touch Joint A, (front) |
| 10354 | Air Pipe TC-105 |
| 10273 | Straight Joint |
| 10369 | Pipe Seat |
| 14346 | Eject Pipe Unit (w/bushing) |
| 10359 | Pipe Supporter |
| 10357 | Pan Head Screw (+) M3 x 5 |
| 10381 | Shoot Hose TC-108(1.8m) |
| 10380 | Cover |
| 10508 | Pan Head Screw (+) M4 x 8 |
| 10100 | Round Flat Washer |
| 10265 | Coupler, Female |
| 10143 | Cleaning Brush |
| 10141 | Spanner "A" |
| 10142 | Spanner "B" |
| 10012 | Hydraulic Oil |
| 00889 | Jaw-Lube (50cc in a bottle) |
