配件料號：

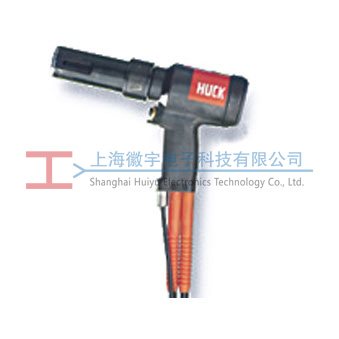

| 2620 series Tooling (HK1012) | ||||||
| Item | Description | Qty | 2620 2620-15 |
A2620 | 2620-PT 2620-PT-15 |
A2620-PT |
| 1 | Split Ring | 1 | 102147 | 102147 | 102147 | 102147 |
| 2 | Retaining Ring | 1 | 501514 | 501514 | 501514 | 501514 |
| 3 | Retaining Sleeve | 1 | 102148 | 102148 | 102148 | 102148 |
| 4 | Piston | 1 | 125612* | 125612* | 125761** | 125761** |
| 5 | Cylinder Assembly | 1 | 126152 | 126152 | 126152 | 126152 |
| 6 | Wiper Seal | 1 | 507407 | 507407 | 507407 | 507407 |
| 7 | Wiper Housing | 1 | 125610 | 125610 | 125610 | 125610 |
| 8 | Back-up Ring | 2 | 501127 | 501127 | 501127 | 501127 |
| 9 | O-ring | 2 | 507412 | 507412 | 507412 | 507412 |
| 10 | Polyseal | 1 | 507408 | 507408 | 507408 | 507408 |
| 11 | Front Gland | 1 | 125609 | 125609 | 125609 | 125609 |
| 12 | HUCK Sticker | 1 | 590517 | 590517 | 590517 | 590517 |
| 13 | GLYD Ring Assembly | 1 | 122769-1 | 122769-1 | 122769-1 | 122769-1 |
| 14 | CE & Warning Sticker | 1 | 590424-7400 | 590424-7400 | 590424-7400 | 590424-7400 |
| 15 | End Cap | 1 | 125614 | 125614 | 125763 | 125763 |
| 16 | Cover Plate | 1 | 125617 | 125617 | ------------ | ------------ |
| 17 | Retaining Ring | 1 | 507406 | 507406 | ------------ | ------------ |
| 18 | Locking Disc | 1 | 122764 | 122764 | 122764 | 122764 |
| 19 | Dump Valve | 1 | 125616 | 125616 | 125616 | 125616 |
| 20 | Strain Relief or Air Fitting | 1 | 505344 | 503902 | 505344 | 503902 |
| 21 | Trigger Switch Assembly | 1 | 120361 | 119345-1 | 120361 | 119345-1 |
| 22 | Ejector Gland Assembly | 1 | 120653 | 120653 | ------------ | ------------ |
| 23 | Ejector Washer | 1 | 120652 | 120652 | ------------ | ------------ |
| 24 | O-ring | 2 | 500779 | 500779 | ------------ | ------------ |
| 25 | Gland | 1 | 122047 | 122047 | ------------ | ------------ |
| 26 | Rod Wiper | 1 | 122742 | 122742 | ------------ | ------------ |
| 27 | Back-up Ring | 1 | 501080 | 501080 | ------------ | ------------ |
| 28 | Quad-Ring | 1 | 501411 | 501411 | ------------ | ------------ |
| 29 | Pintail Ejector | 1 | 122705 | 122705 | ------------ | ------------ |
| 30 | Barbed Retainer | 1 | ------------ | ------------ | 125765 | 125765 |
| 31 | Screws | 3 | ------------ | ------------ | 500060 | 500060 |
| 32 | Deflector | 1 | ------------ | ------------ | 122766 | 122766 |
| 33 | Wiper Seal | 1 | ------------ | ------------ | 505894 | 505894 |
| 34 | Polyseal | 1 | ------------ | ------------ | 506160 | 506160 |
| 35 | Spacer | 1 | ------------ | ------------ | 122762 | 122762 |
| 36 | Retaining Ring | 1 | ------------ | ------------ | 506159 | 506159 |
| 37 | Set Screw | 1 | 501731 | 501731 | 501731 | 501731 |
